Norfolk Southern SD60M 6775

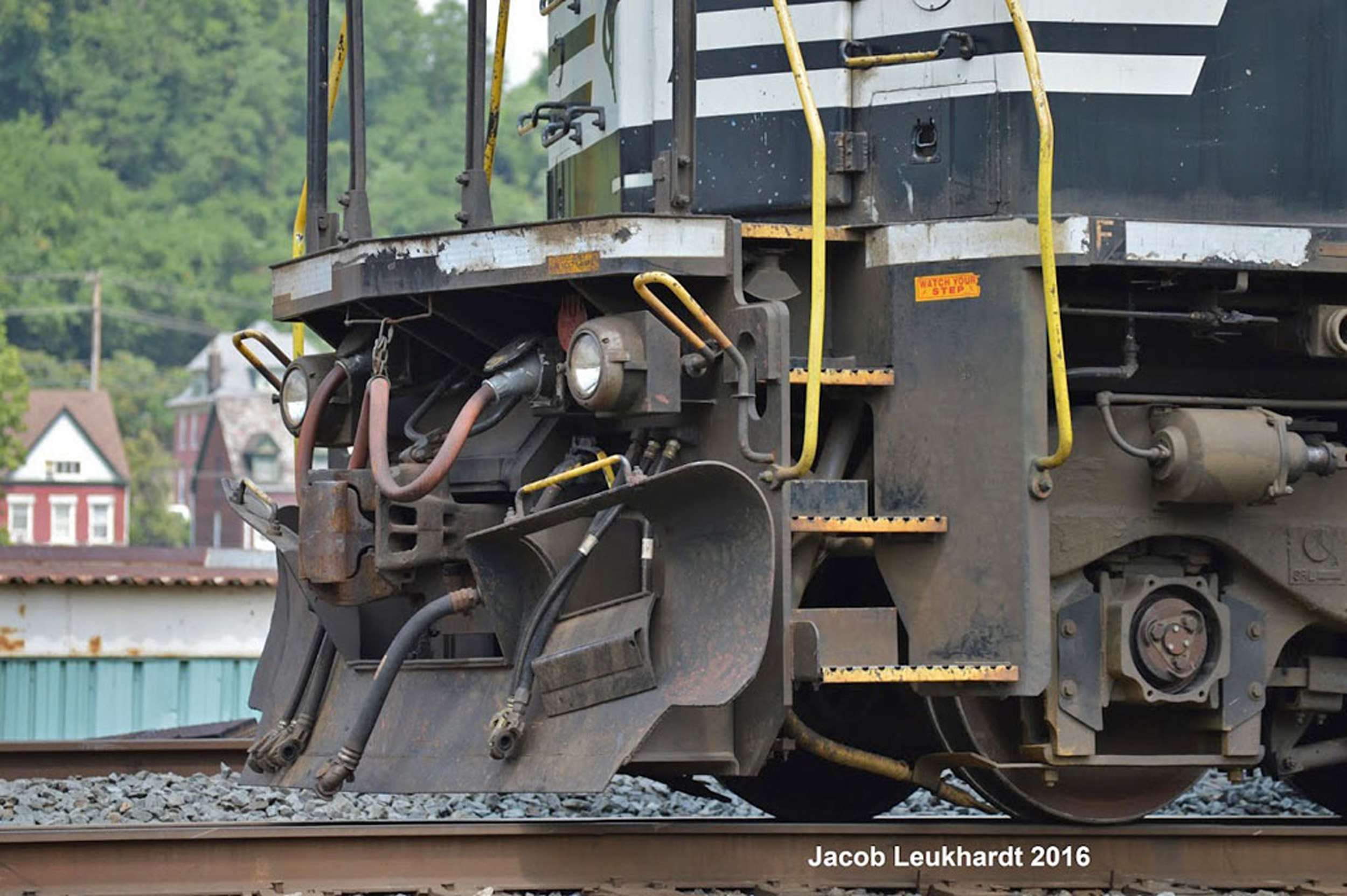

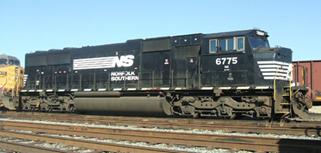

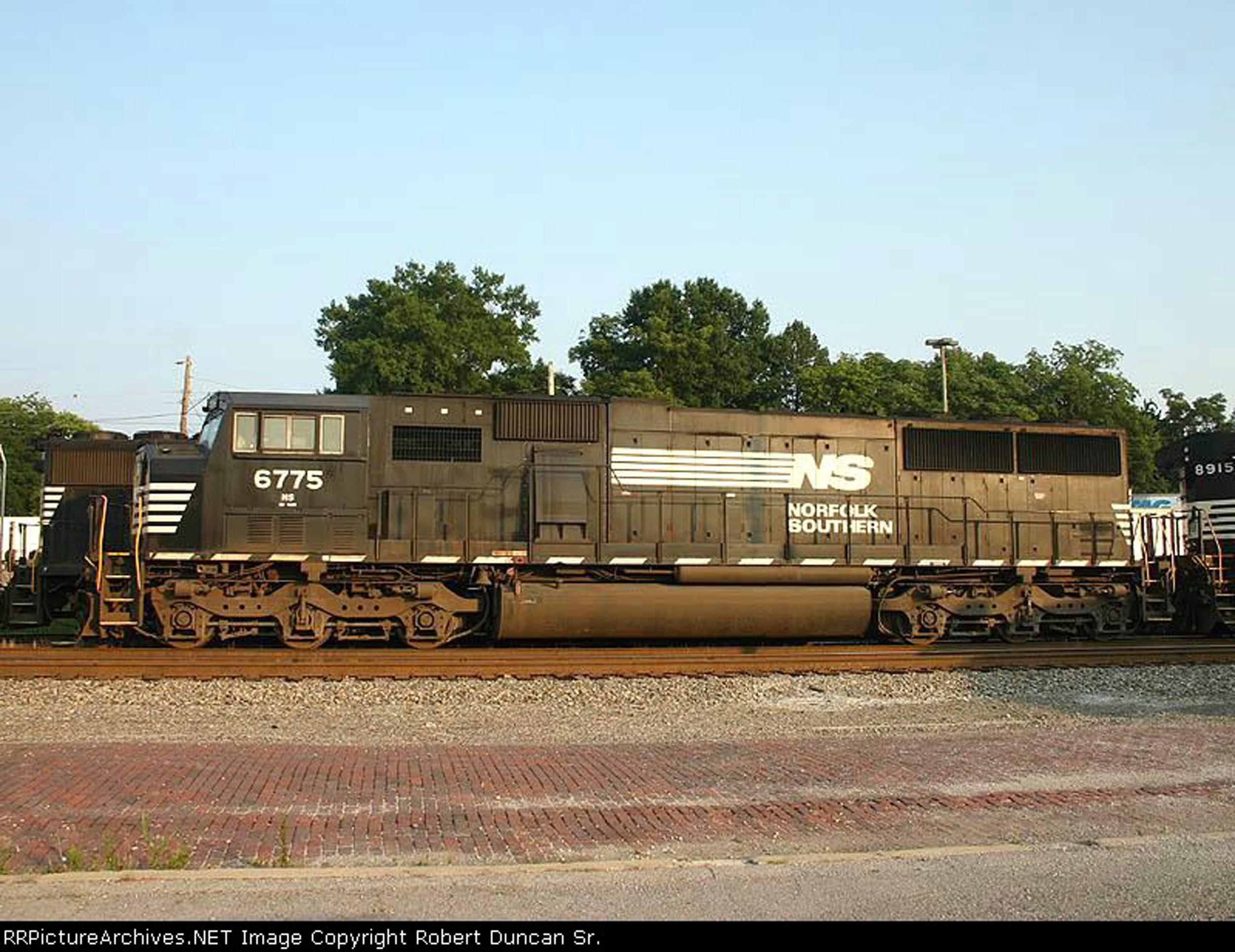

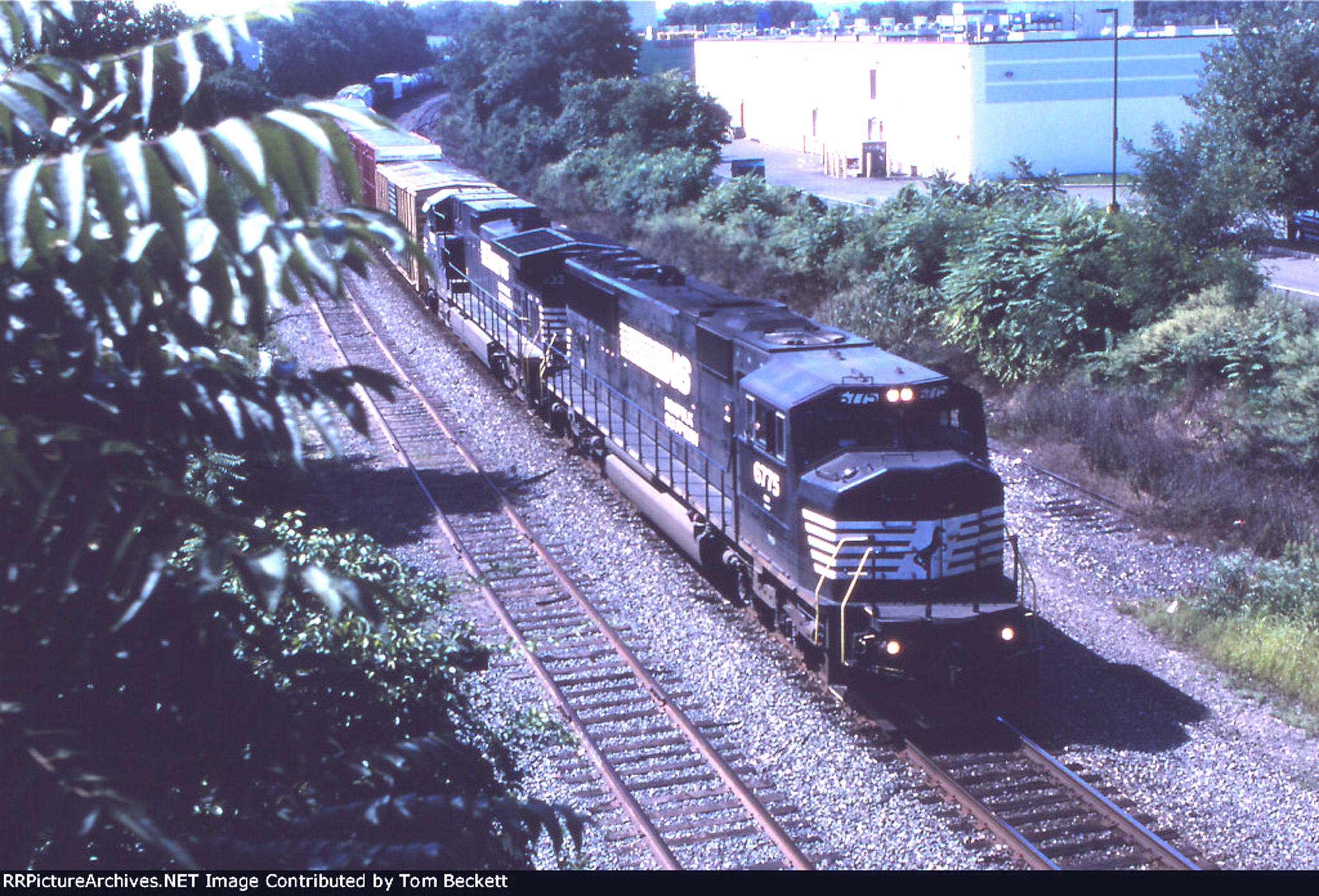

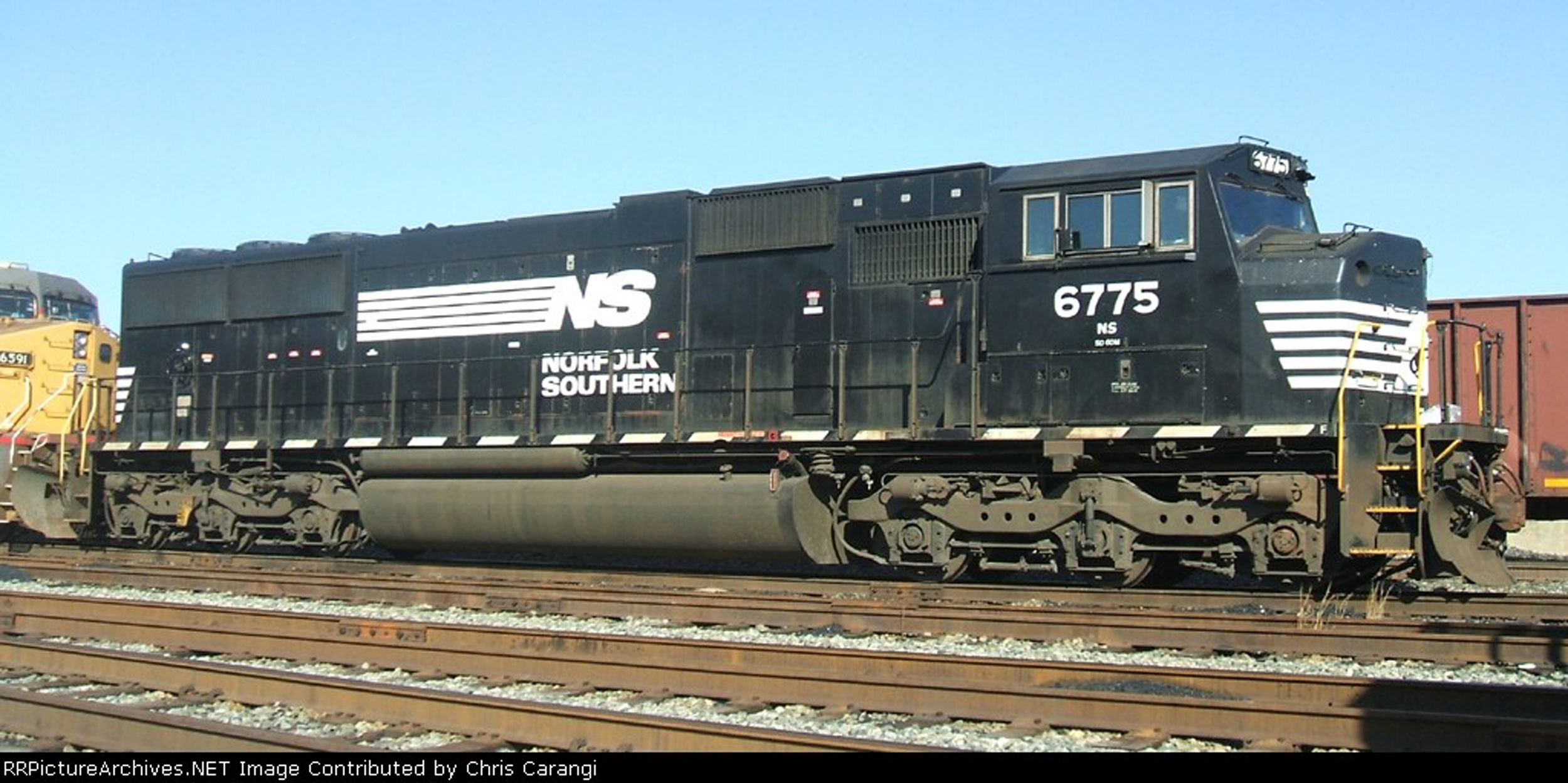

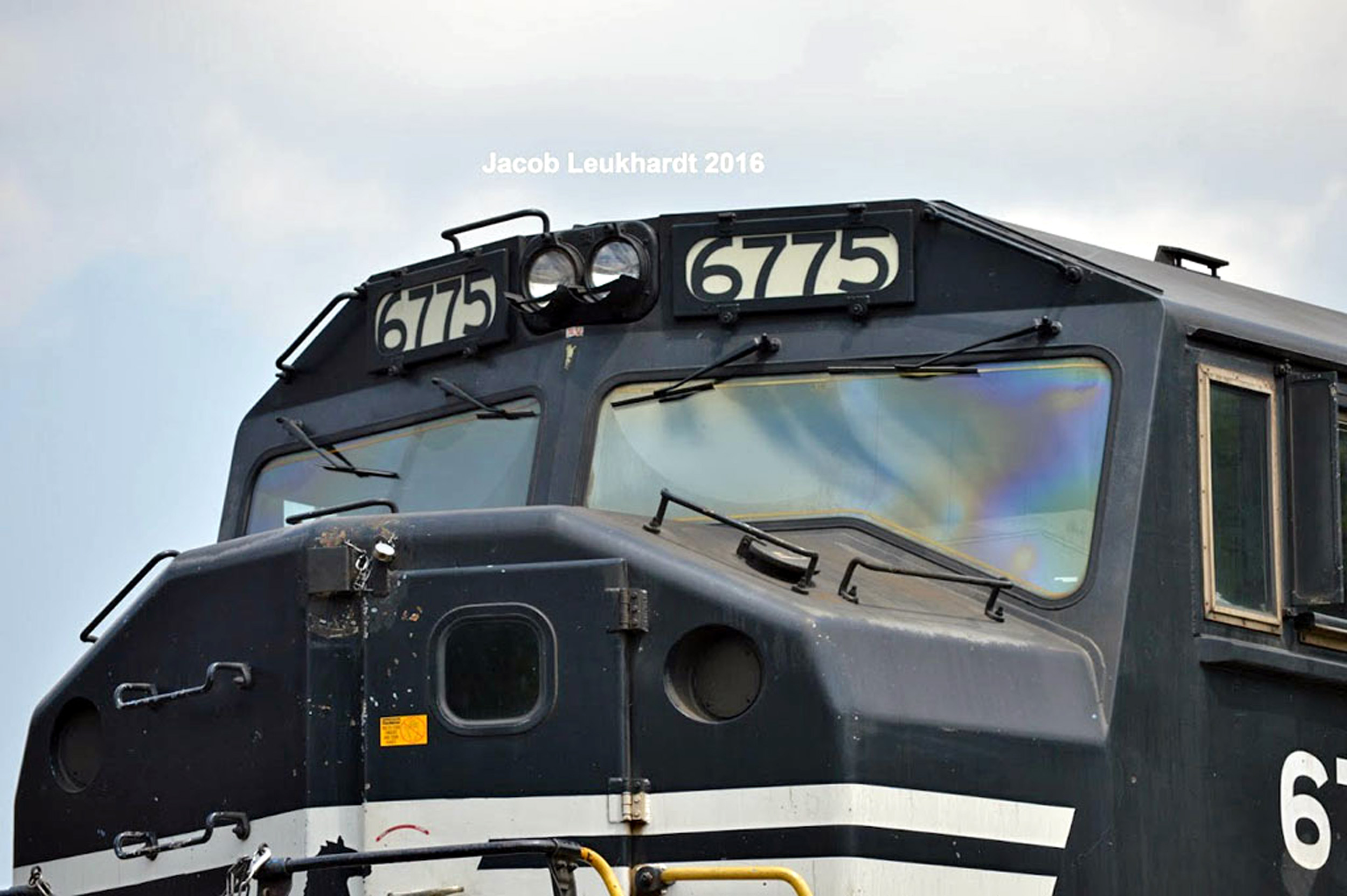

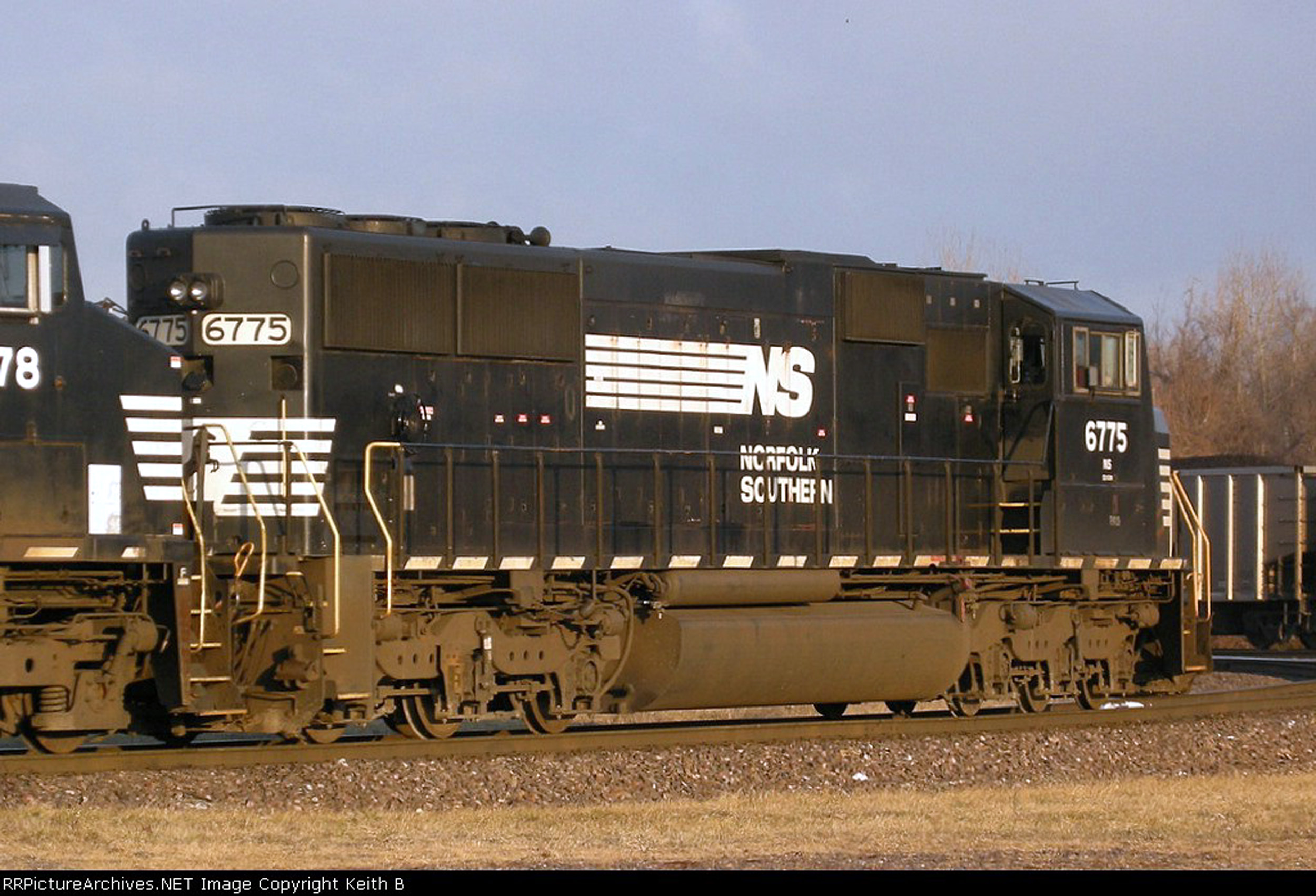

I picked 6775 because there was a lot of on line photos including the first below on rrpicturees.net taken by a friend in Deepwater NJ 15 minutes from me. It was a very well traveled loco.



Norfolk_Southern_SD60M_6775_1 small Norfolk_Southern_SD60M_6775_2 small

Norfolk_Southern_SD60M_6775_3 small. jpg Norfolk_Southern_SD60M_6775_4 small



Norfolk_Southern_SD60M_6775_5 small Norfolk_Southern_SD60M_6775_6 small

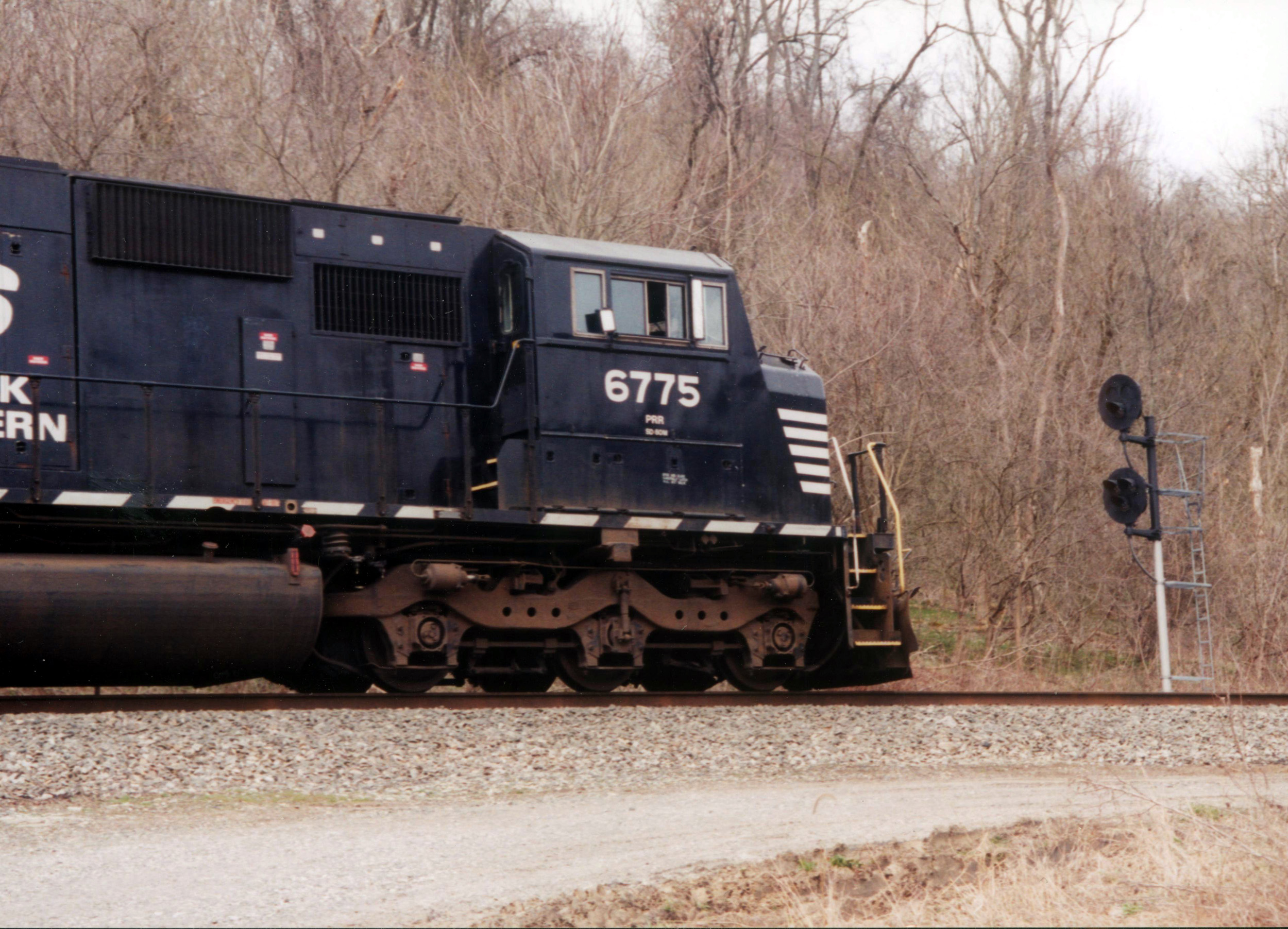

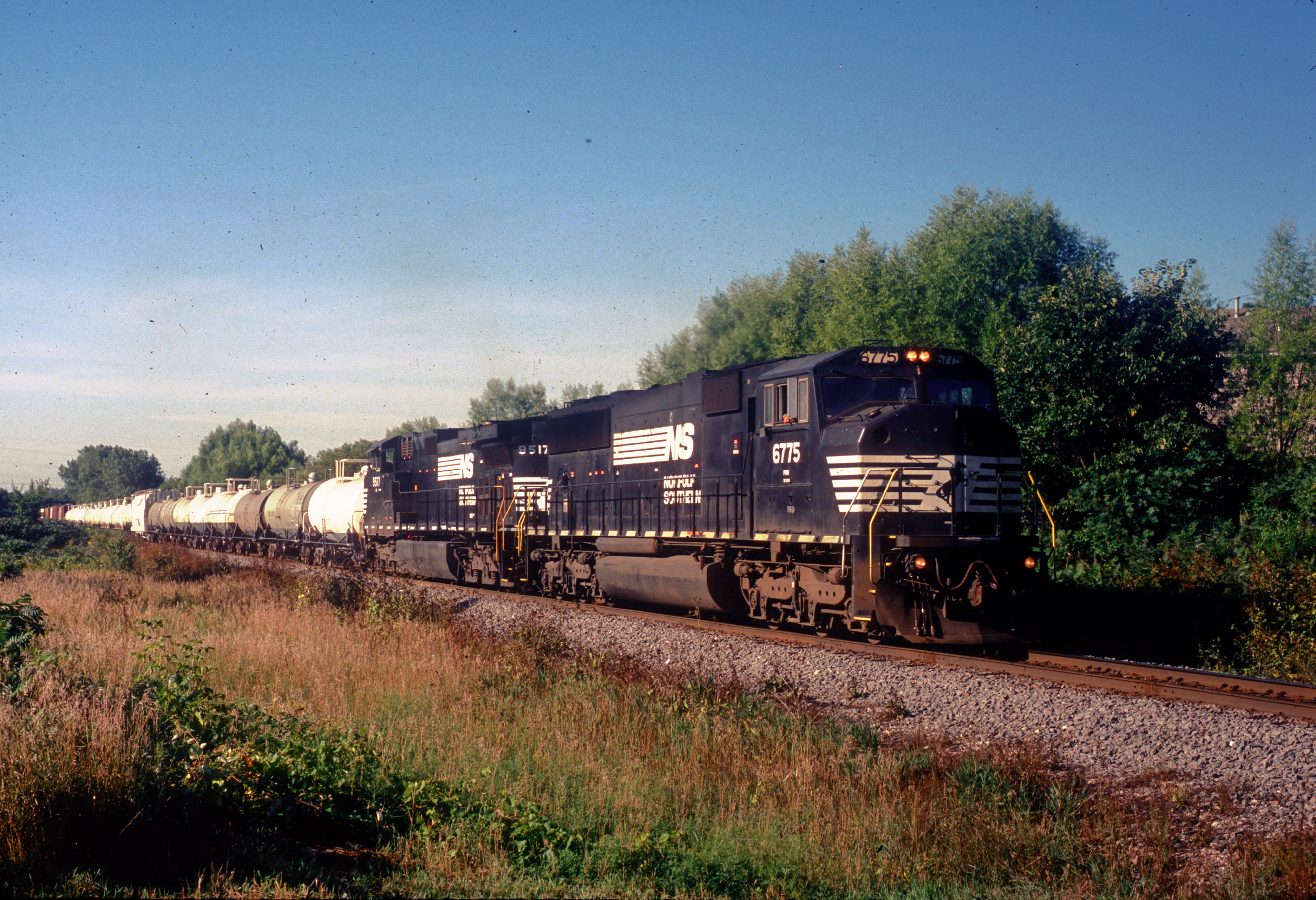

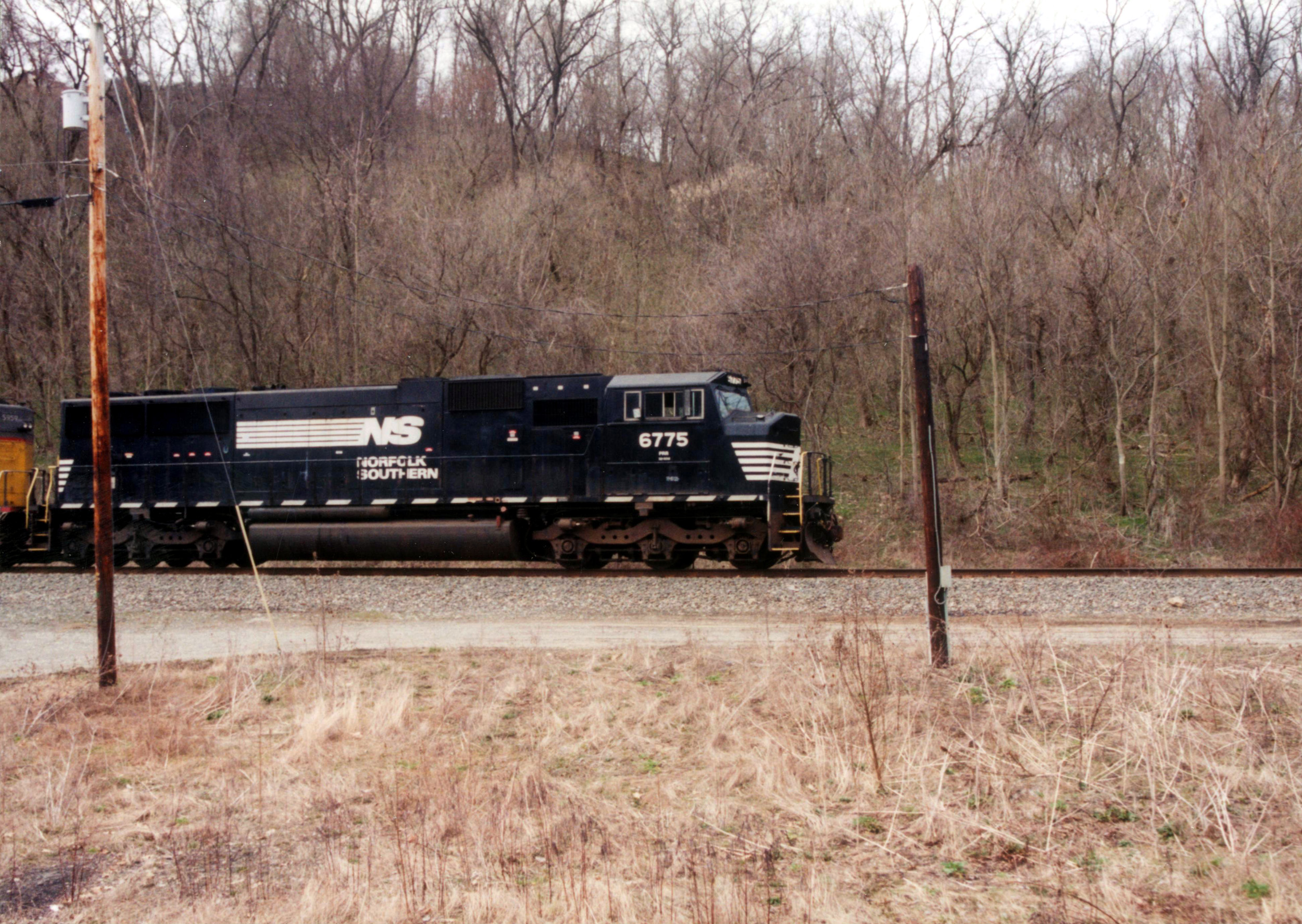

These are photos I bought from eBay.

Norfolk_Southern_SD60M_6775_7s small Norfolk_Southern_SD60M_6775_8 small

Norfolk_Southern_SD60M_6775_9 small

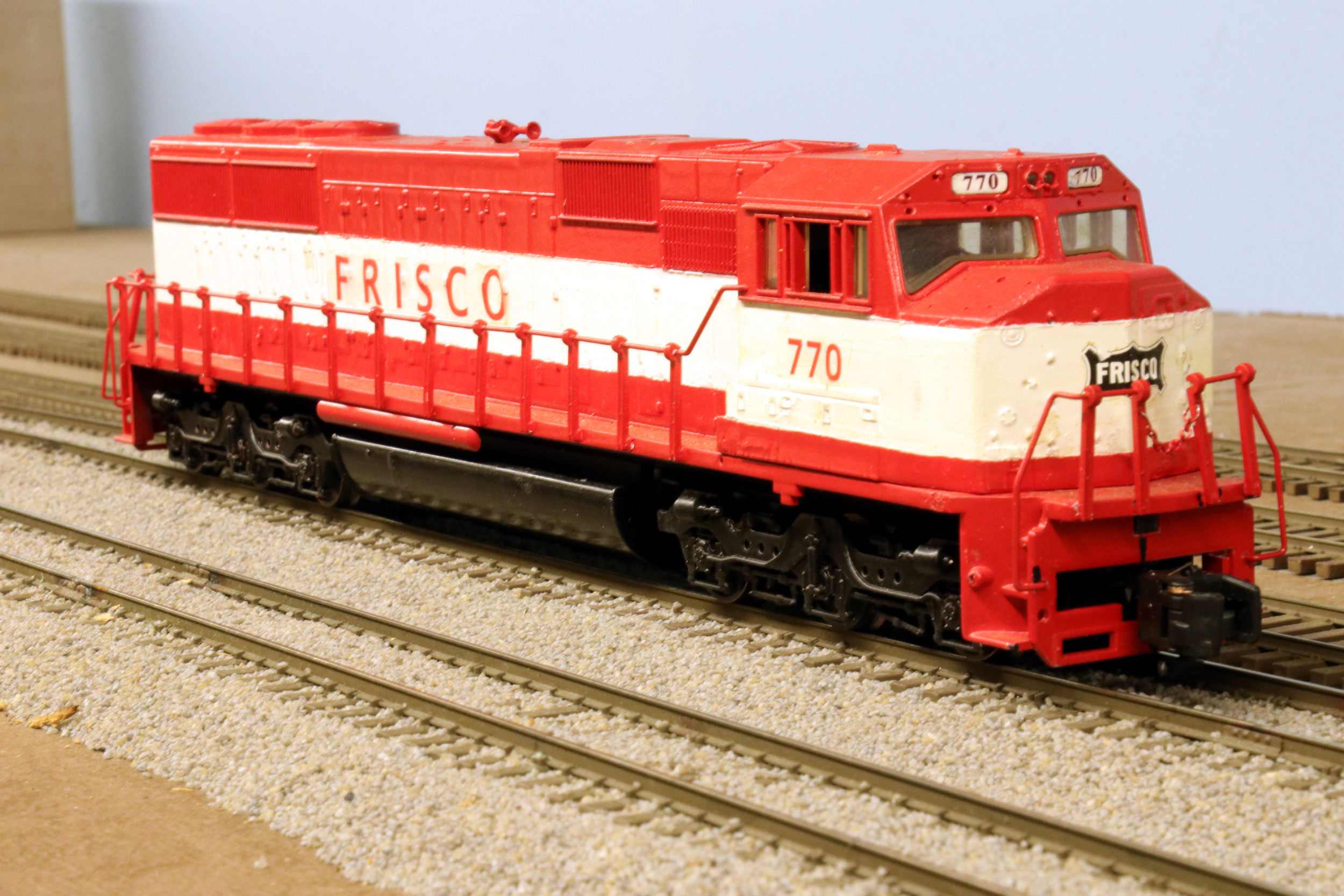

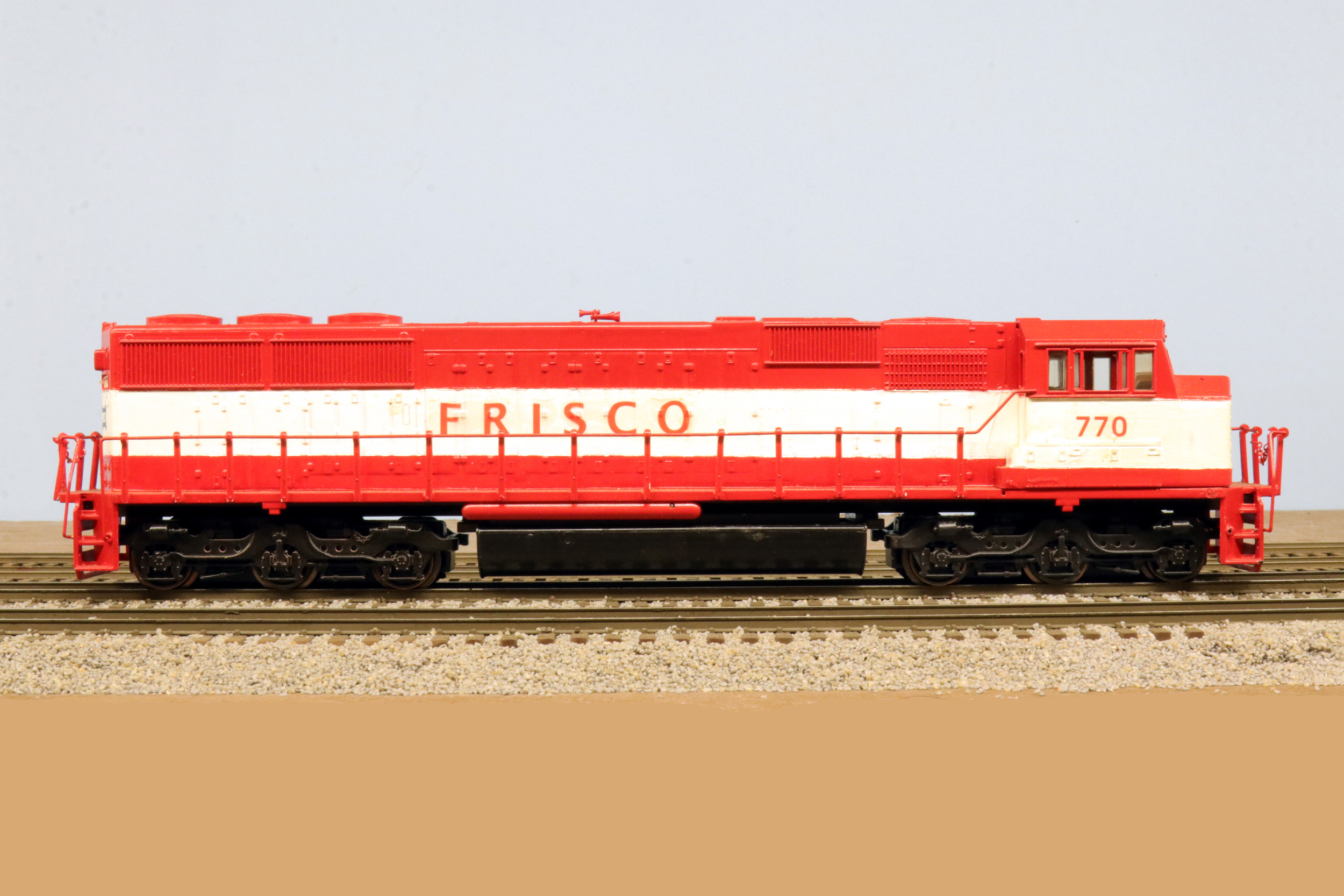

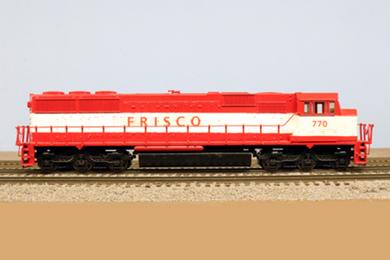

This is an American Models SD60 released in 2001. I have other American Models SD60 but none were made as Wide Cab SD60M for Norfolk Southern. They run really well and can pull a lot of cars. This came up for sale on eBay in March 2025 for a good price because of the awful paint. That is fine with me. I don’t model Frisco. It will get stripped. I have been told Frisco did not even have SD60.



Unfortunately the SD60 has been out of stock at American Models for a while. It is the most readily available “modern” loco in S Scale besides the American Flyer SD70ace and ES44. They are both permanently out of production since Lionel ended all American Flyer sales.



These photos were taken on 3-13-25 as received still with the Hi Rail wheels and couplers. I bought new scale wheels from American Models and installed my SD60 draft gear. That is a first for this SD60. I 3D printed these draft gear myself. They were previously bought from the now closed Shapeways

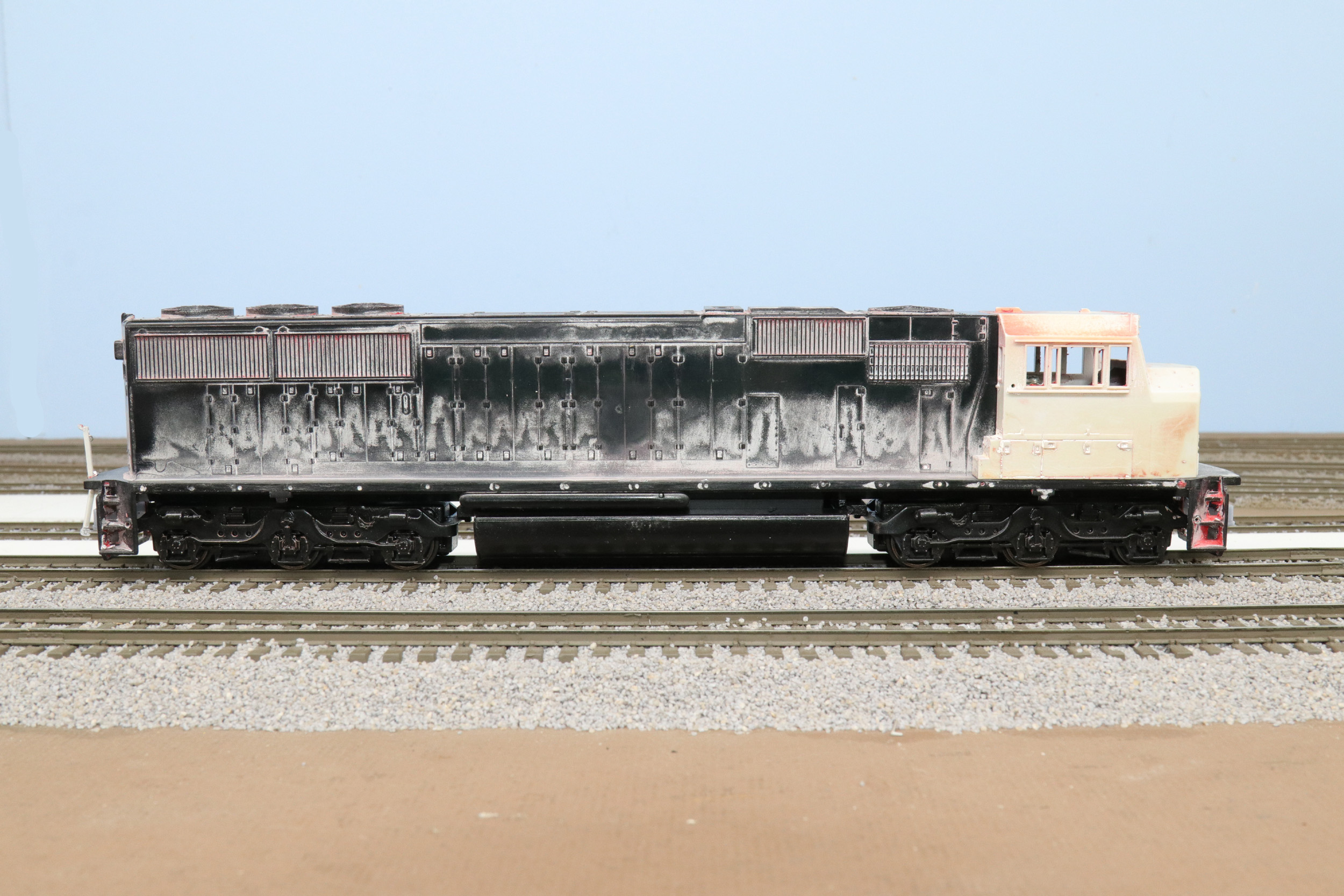

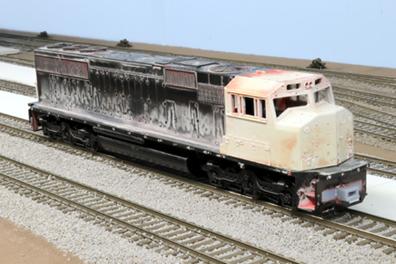

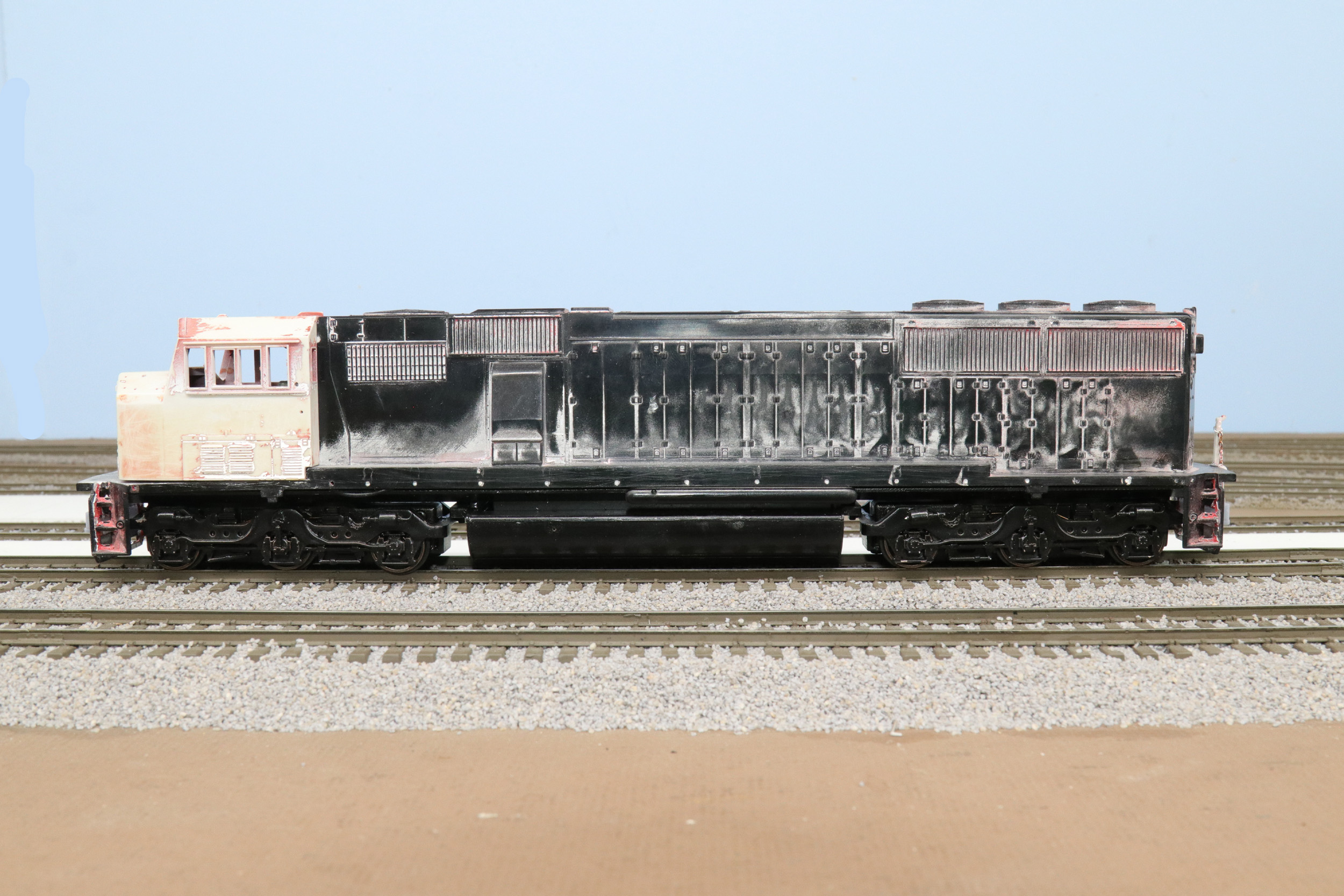

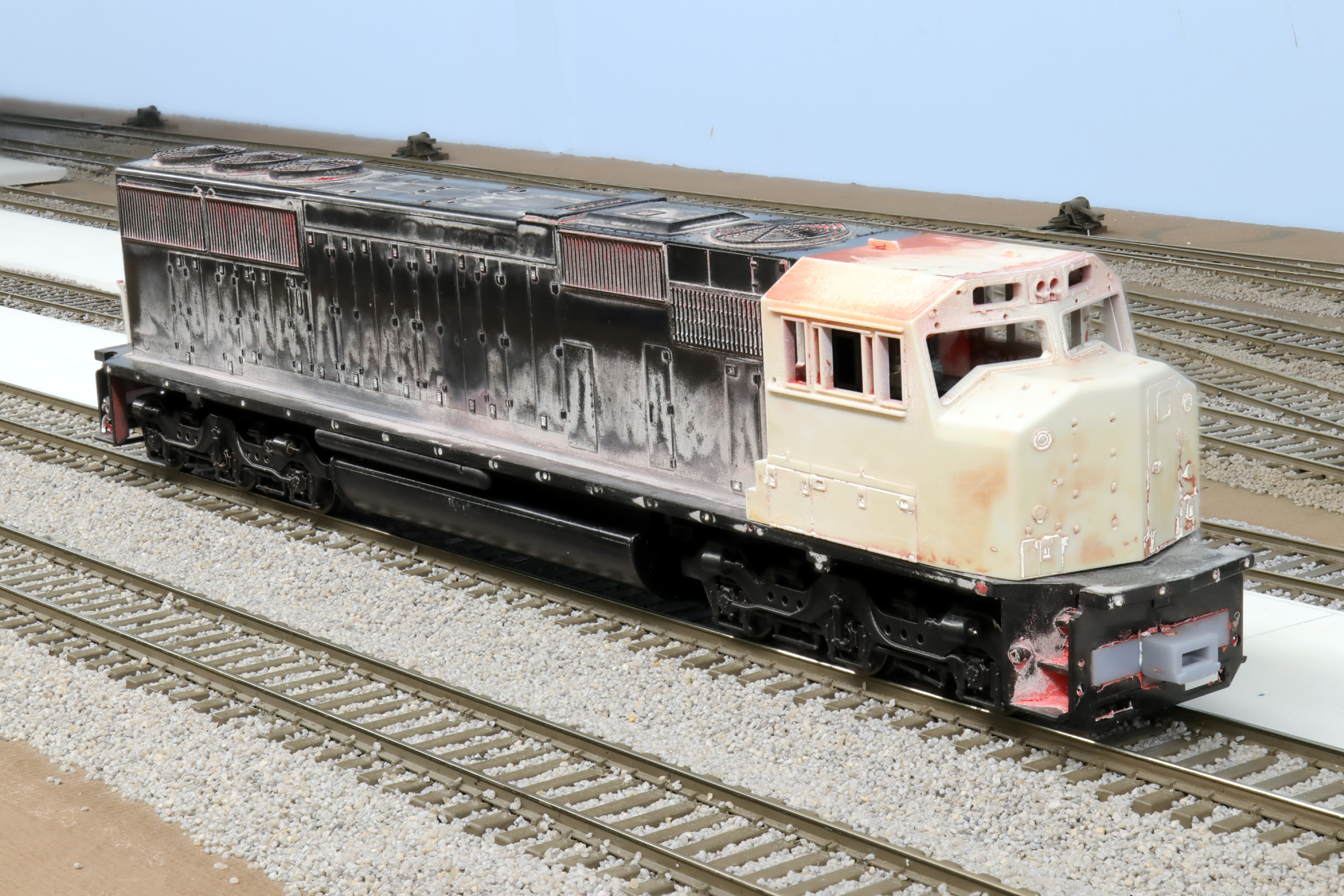

On 5-12-25 I finally dunked this to strip the paint. Scalecoat is back in business selling the plastic paint stripper and paint thinner – only. This loco was painted silver, then white and red. Stripping a plastic loco is an all day project of soaking and scrubbing until clean.

Norfolk_Southern_SD60M_6775_7 small Norfolk_Southern_SD60M_6775_8 small



Added 2-22-26

This has popped to the top of the to do list after almost a year off. I did some work to it before fading off into other projects as I so often do. I added my 3D printed draft gear that is also on my other SD60.



I had some bigger plans for this loco but my completion times are growing. I just don’t have the energy like I used to and get work done after work so most progress is on the weekends only. Get it done – good enough. This will have my first ever use of the open 3D printed fan grills I made. It will get grab irons and some other details not on it as built from American Models.







Handrail Stanchions

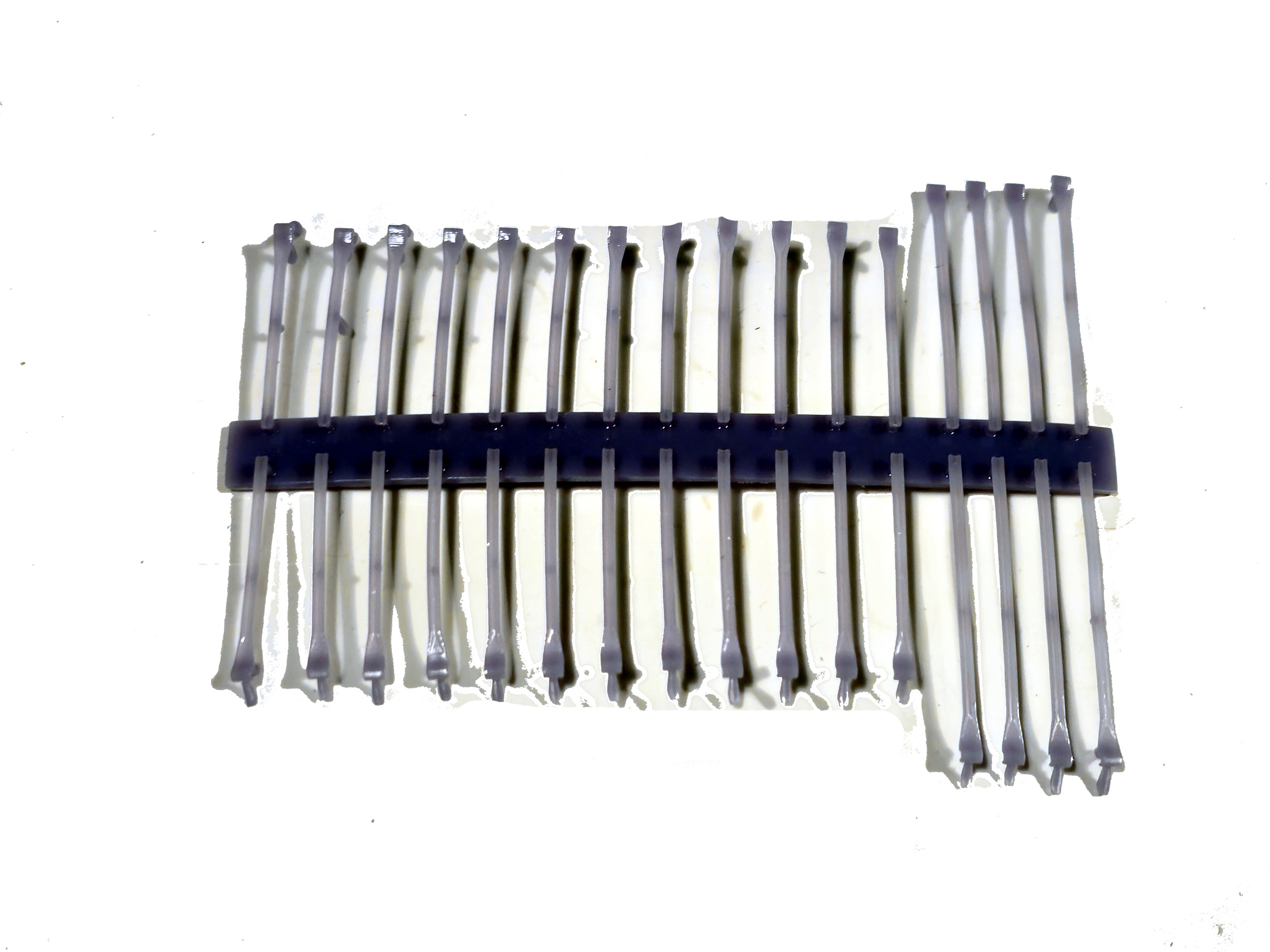

By far my biggest issue with this loco is really wrong handrail stanchions. They look nothing like what EMD made. The real SD60 was alive and well when American Models made this loco so there is no explanation why they are so wrong. I got the real EMD handrail stanchion drawing and tried designing them myself. I got “close” but I was not convinced my parts would not be fragile and/or possibly warp. Brass was the best answer. I have wanted brass handrail stanchions for the SD60 for a while. But again after almost a year of this loco I am no closer to getting brass stanchions made. I have the original and some new American Models stanchions I am going to use. This will match the rest of my SD60 however wrong they are with the original American Models stanchions.









Updated 2-22-26
