Conrail SD60 6867 Banner



I updated my Conrail SD40-2 I had since 1989 in October 2016. This SD60 was listed on eBay in November 2016 starting at $1.00. This loco was in a collection of about 100 brass models that were sold without the original box, and most by far had some to significant damage to them. This did not seem to have any damage to it.  I won it completely on a goof for about 1/3 of the price. It is 1 of the last things made in S Scale by Overland directly in 1996. Overland was the builder of many River Raisin projects for years, but sold by River Raisin.



S_Scale_Conrail_SD60_6867_1 small



S_Scale_Conrail_SD60_6867_2 small

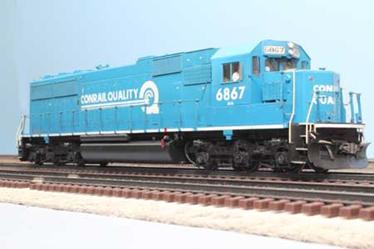

It is factory painted as Conrail Quality scheme. Again the benefit/curse of 2016 and the internet with everything well documented and easily available revealed Conrail SD60 6867 was very likely never painted in the Conrail Quality scheme. I would have preferred it to not be the Conrail Quality scheme.



I did pretty much everything from the SD40-2 except the lit numberboards and corner markers to the SD60 with the wheel pick ups and Tsunami2. If this was an unpainted model I would have made brackets to hold the LEDs in place. Holding the front LEDs in place was not an issue. There was nothing for the rear, since it had small incandescent bulbs when I got it. As with most things, I make stuff on the fly. I am pretty happy with this bracket I glued to the inside of the long hood.



S_Scale_Conrail_SD60_6867_3 small S_Scale_Conrail_SD60_6867_4 small



For the mid 1990s Overland changed the design of the drives using 2 “HO” motors, sometimes not even coupled to each other. It is 2 locomotives in 1 shell, not possibly synced perfectly to each other. I HATED those drives. They are also in my River Raisin Models PRR RS11 and River Raisin Models PRR E8. This SD60 is likely to be the only loco I will keep this 2 motor set up as intact. At least these 2 motors are coupled together, with tubing, which I also hate. The one great thing though is there is a ton of room for decoders etc. I had no issues fitting everything in. As usual, I use a lot of Miniatronics plugs to be able to disassemble without unsoldering wires. The Soundtraxx Current Keeper stack of capacitors really helps smooth over any sputtering of the pick up.



There were some scratches in the paint on the cab roof in a very visible area. I oversprayed the cab roof and long hood roof with Tru Color Conrail Blue paint. It was close but not a perfect match. What else could I do? Good enough.



S_Scale_Conrail_SD60_6867 small_5 S_Scale_Conrail_SD60_6867_6 small



Completed 11-24-16

(Thanksgiving!)



S_Scale_Conrail_SD60_6867_7 small  S_Scale_Conrail_SD60_6867_8 small S_Scale_Conrail_SD60_6867_10 small



S_Scale_Conrail_SD60_6867_11 small S_Scale_Conrail_SD60_6867_12 small S_Scale_Conrail_SD60_6867_13 small





Posed with SD-40-2 6469



S_Scale_Conrail_SD60_6867_14 small  S_Scale_Conrail_SD60_6867_15 small  S_Scale_Conrail_SD60_6867_16 small



Updated 2-25-18
