Logging Bobber Caboose

When I was 15 to about 25 I was in HO. When I was about 15 I bought this assembled Kadee logging caboose kit that I just loved for some unknown reason. I knew nothing about logging, but eventually made some HO skeleton log cars as well. It was just “cute”. From the first time I saw it I always called it an “Outhouse on wheels”. Whether is actually ever existed on any real logging railroad I don’t know. Kadee could have just winged it and made it up as well. The Kadee car is below.



Logging_Bobber_Caboose_1 small



Flash forward to 2015 when I got my FORM1 3D printer where making almost anything was possible, this Bobber came to mind. I decided I needed an S Scale version of it. This absolutely was a “just for a goof” and designing challenge project. I really LOVE doing it! I bought another Kadee car as my other one was sold many years ago. The reverse engineering began by measuring the Kadee car and enlarging to S. My version is CLOSE but not exact.



I had the parts lying around and was looking for a quick different project. Start to finish was about a week so it got done.



3D Printing

The part orientation and where you put the supports for printing are everything. You want to the supports to go on the least seen surface. It will not likely be able to be seen because the surface will be rough and unusable. The roof top turned out really well. The body never formed as perfectly. There was always something wrong with the prints until I just gave up. You can see them in the photos below. The body I used had some bubbles in the ends. I filled them with putty before painting.

Logging_Bobber_Caboose_2 small Logging_Bobber_Caboose_3 small



Some early test prints of the roof and body

Logging_Bobber_Caboose_4 small Logging_Bobber_Caboose_5 small



This was a test mock up of the complete model. It proved I could not 3D print everything. The truck was too brittle and had to be brass.

Logging_Bobber_Caboose_6 small

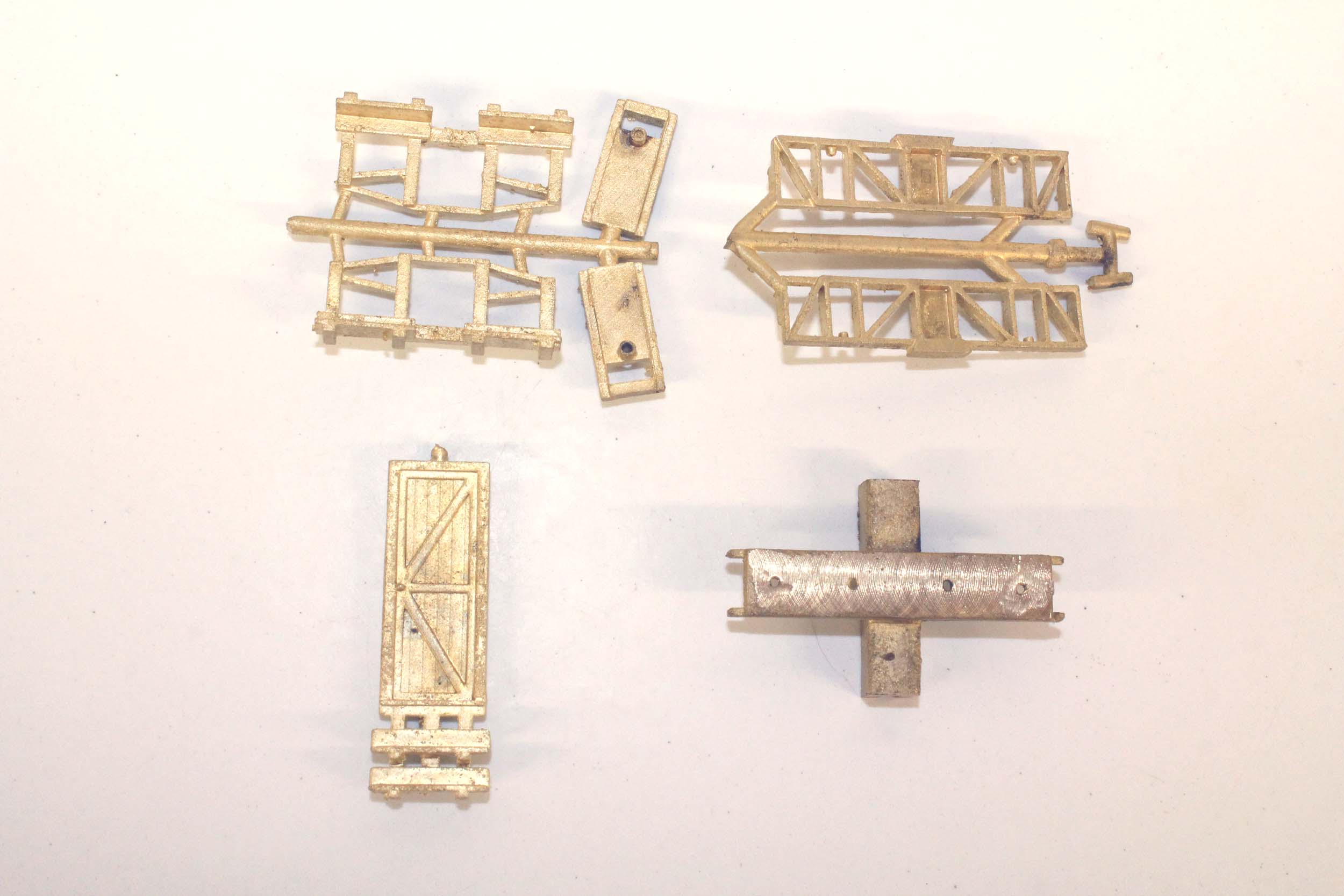

Brass Parts

Since I had the FORM1 I printed some parts in the blue burnout material for brass casting. They turned out pretty well. I am not happy that the wheels are SOLDERED in. Since I am only making one I will live with it.

Logging_Bobber_Caboose_7 small Logging_Bobber_Caboose_8 small Logging_Bobber_Caboose_9 small



Final Mock Up Before Paint

Logging_Bobber_Caboose_10 small Logging_Bobber_Caboose_11 small Logging_Bobber_Caboose_12 small

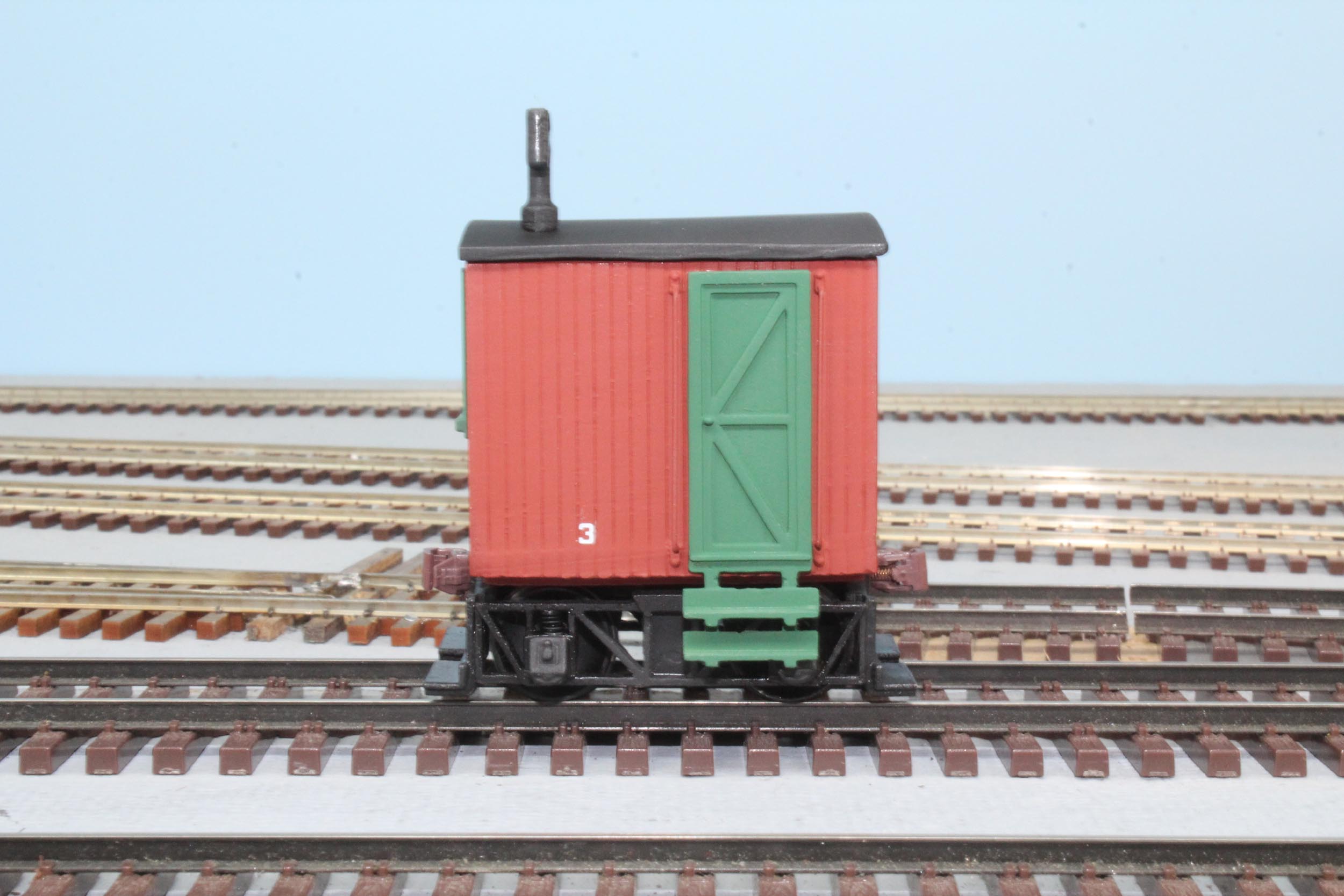

Completed 10-1-17

 I don’t know why but at the last second I decided the windows and doors had to be green. It just POPS. I cast a significant lead weight that fills the floor. It is a bit heavy but stays on the track. You could say this is my first scratchbuilt S Scale car ever. It was just a mix of fantasy and “because I can.” It was big fun to do.

Logging_Bobber_Caboose_13 small Logging_Bobber_Caboose_14 small

Logging_Bobber_Caboose_15 small Logging_Bobber_Caboose_16 small Logging_Bobber_Caboose_17 small



A Bunch Of Bobbers

Bobber cabooses are very rare in S Scale. Almost no one has even 1. The first photo is the other Bobber caboose I made from a 1950s kit. The other photo is all 3 of my Bobbers. I made 2 of them. The Reading caboose was made by the late Frank Titman.

Logging_Bobber_Caboose_18 small Logging_Bobber_Caboose_19 small



Updated 6-17-20
